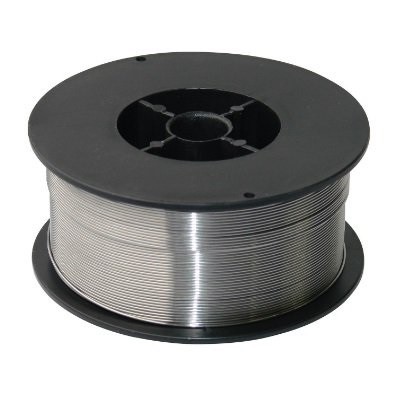

XM-16 Stainless Steel Spring Wire

Name: XM16 Stainless Steel Spring Wire
Brand: Fushun
Price: 1 USD

China XM-16 Stainless Steel Spring Wire wholesale

Brand Name : Fushun

Model Number : ASTM A313 Type XM-16

Certification : ISO9001:2008

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40,000tons/year

Delivery Time : 15-30 days

Packaging Details : nylon/pallet/case

grade : XM-16

Diameter inch : Stainless

form : wire

Surface Condition : bright, copper, lead, oxide, and other

Type : XM-16

UNS : S45500

Classification : Stainless Steel Spring Wires

Contact Now

ASTM A313 Type XM-16 UNS S45500 Stainless Steel Spring Wire

XM-16 is a kind of martensitic precipitation hardening stainless steel offering high strength and hardness along with excellent corrosion resistance. XM-16 is the ASTM designation for this material. S45500 is the UNS number. And Alloy 455 is the common industry name.

Chemical composition

C	Si	Mn	Ni	P	S
max 0.05	max 0.50	max 0.50	7.5-9.5	max 0.040	max 0.030
Cr	N	Mo	Al	Cu	Cb+Ta
11.0 - 12.5	max 0.10	max 0.05	0.75-1.50	1.50-2.50	0.10-0.50

Specification

ASTM A313M-2003 Stainless Spring Steel Wires

Supplying Size

Diameter 0.1 to 15 mm ; 0.005 to 0.6 inch

Delivery condition

Type XM-16 shall be furnished in the cold-drawn condition ready for fabrication. Following fabrication Type XM-16 shall be age or precipitation hardened to produce their maximum strength properties.

Surface condition

Stainless steel spring wire is supplied with different types of finish such as bright, copper, lead, oxide, and other.

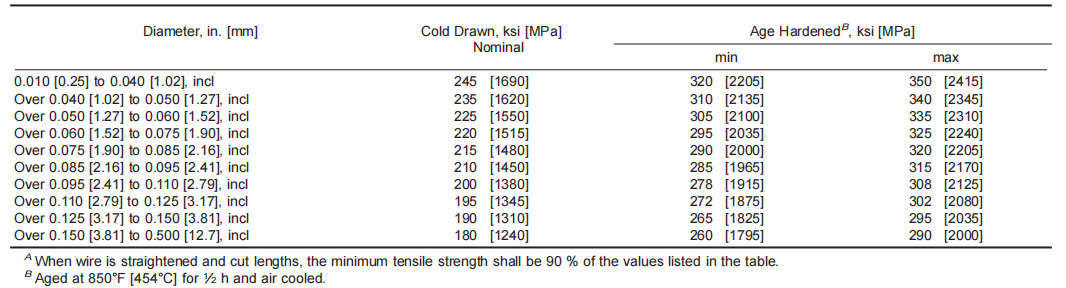

Tensile Strength

XM-16 Stainless Steel Spring Wire

Application

Stainless steel wire is the raw material for screws, springs, metallic net, cable wire and hardware. It is widely used in filter, building and important for electronic parts, oil and fiber industry, kitchenware and hardware.

Mill test certificate

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
